Name: XP2 Building Products Smoke Density Testing Equipment ASTM D2843 Smoke Density Tester
Brand: DELTA TECH
Price: 1.0 USD

Brand Name : DELTA TECH

Model Number : XP-2

Certification : ISO9001

Place of Origin : China

MOQ : 1 set ASTM D2843 Smoke Density Tester

Price : USD1.0

Payment Terms : T/T, Western Union

Supply Ability : 10 sets ASTM D2843 Smoke Density Tester per month

Delivery Time : 45 days

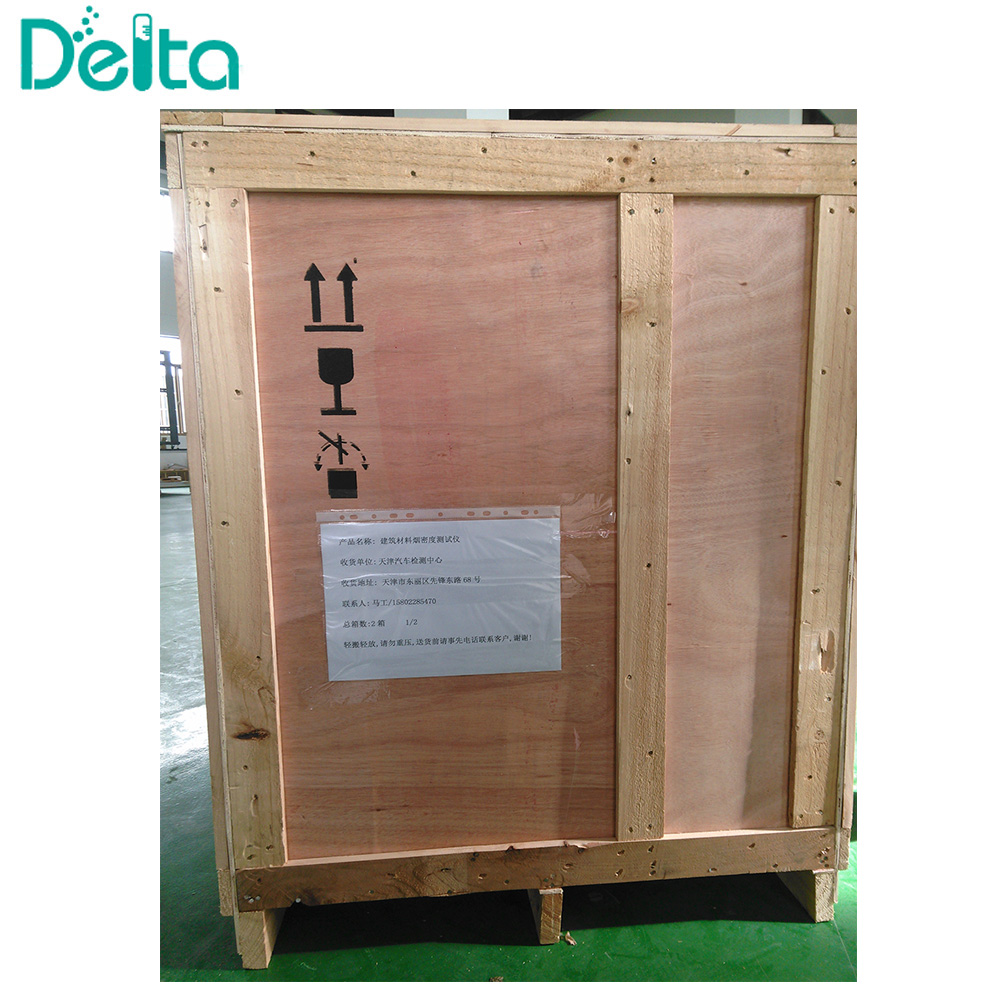

Packaging Details : ASTM D2843 Smoke Density Tester is packed in one veneer case

Item Name : XP-2 Building Products Smoke Density Testing Equipment ASTM D2843 Smoke Density Tester

Function : For building material smoke density testing

Application field : Building material

Reference standards : ASTM D2843

Dimension : 800 mm (W) x 500 mm (D) x 1000 mm (H)

Weight : 35kg

Packing mode : Veneer case

Warranty period : 1 year

Service : Installation and commissioning service is available

Safety Features : Over Temperature Protection, Emergency Stop Button

Fuel Gas : 95% Propane Gas

Display : Digital display

Electrical : 230 volts Nominal 10 Amps

Contact Now

Introduction:

The XP-2 Smoke Density Chamber is designed and manufactured according to the ASTM D2843 standard. It is mainly used for testing building products.
By detecting the loss of light transmission in the test chamber, it can measure the smoke density from burning and the decomposition of building material during the test.

The test chamber is Teflon coating, to resist the corrosion of smoke released during burning.
The light source is an incandescent lamp, and the photoelectric sensor is a silicon photodiode with a cosine calibration function.
Color filter is equipped to filter out ultraviolet light and infrared light.
The gas pressure of the main burner is 256KPA, it is subjected to flame impact on the test specimen.
The gas pressure of the auxiliary burner is 138KPA, so it can continue to burn the molten droplets.
The computer and test software are equipped.

No.	Item Name	XP-2 Building Products Smoke Density Chamber
1	Dimension	800 mm (W) x 500 mm (D) x 1000 mm (H)
2	Weight	35kg (computer is not included)
3	Power supply	220V, 10A, 50Hz,
4	Ambient temperature	10 ~ 35 Centigrade
5	Installation place	Fume hood
